Multilayer clad strip

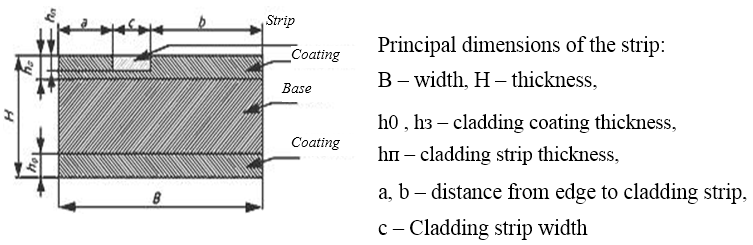

The multilayer clad strip is a composite strip material consisting of two or more layers of dissimilar metals obtained by joint cold rolling.
The bimetallic strip combines the properties of the base and the coating, which makes it possible to achieve properties unattainable for monometal, as well as to significantly reduce the cost of the material.
The multilayer clad strips are made of various metals and alloys up to 100 mm wide. The strips are produced on rolling equipment by cold roll cladding.
The range of cladding strips:
|
No. |
Strip Ident. Code |
Material Designation |
Cladding Layers, Strips Designation |
Purpose |
|
1 |
ФМФз |
42N (feni)-copper-42N (feni) with gold strip |
gold |
precision machinery industry
electronics
contacts
integrated chips
precision machinery industry
electronics
integrated chips |
|
2 |
КМКз |
29NK (kovar)-copper-29NK (kovar) with gold strip |
gold |
|
|
3 |
Фз |
42N (feni) with gold strip |
gold |
|
|
4 |
МСр |
copper with silver strip |
silver |
|
|
5 |
К65Ср |
bronze with silver strip |
silver |
|
|
6 |
ЛСр |
brass with silver strip |
silver |
|
|
7 |
ФСр |
42N (feni) with silver strip |
silver |
|
|
8 |
СрФСр |
silver-42N (feni) — silver |
silver |
|
|
9 |
НФНСр |
nickel-42 (feni) — nickel with silver strip |
silver |
|
|
10 |
НзСр |
nickel-silver with silver strip |
silver |
|
|
11 |
К65а |
bronze with aluminium strip |
aluminium |
|
|
12 |
Жа |
iron with aluminium strip |
aluminium |
|
|
13 |
Ла |
brass with aluminium strip |
aluminium |
|
|
14 |
Фа |
42N (feni) with aluminium strip |
aluminium |
|
|
15 |
На |
nickel with aluminium strip |
aluminium |
|
|
16 |
НзА |
nickel-silver with aluminium strip |
aluminium |
|
|
17 |
МЖМа |
copper-iron-copper with aluminium strip |
aluminium |
|
|
18 |
НФНа |
nickel-42 (feni)-nickel with aluminium strip |
aluminium |
|
|
19 |
ФМФа |
42N (feni)-copper-42N (feni) with aluminium strip |
aluminium |
|
|
20 |
АЖА |
aluminium-iron-aluminium |
aluminium |
automotive industry |
|
21 |
МЖМСр |
copper-iron-copper with silver strip |
silver |
electronics |
|
22 |
К65зл |
bronze with gold strip |
gold |
|
|
23 |
АН |
aluminium-nickel |
aluminium |
electro-vacuum appliances |
|
24 |
КМ |
29NK (kovar)-copper |
copper |
metal-glass enclosures |
|
25 |
ЛЖЛ |
brass-iron-brass |
brass |
electrical engineering, precision machinery industry |
|
26 |
МЖМ |
copper-iron-copper |
copper |
|
|
27 |
МЖН |
copper-iron-nickel |
copper, nickel |
chemical current sources |
|
28 |
МЖА |
copper-iron-aluminium |
aluminium, copper |
fabrication of building structures and electro-vacuum appliances |
|
29 |
БрН |
bronze-nickel |
nickel |
chemical current sources |
|
30 |
МФ |
copper-42N (feni) |
copper |
electronics |
|
31 |
МФМ |
copper-42N (feni)-copper |
copper |
|
|
32 |
НЛН |
nickel-brass-nickel |
nickel |
|
|
33 |
НФН |
nickel-42N (feni)-nickel |
nickel |
|
|
34 |
НЖН |
nickel-iron-nickel |
nickel |
|
|
35 |
ФМФ |
42N (feni)-copper-42N (feni) |
42N (feni) |
|
|
36 |
КМК |
29NK (kovar)-copper-29NK (kovar) |
29NK (kovar) |
|
|
37 |
ФЖФ |
42N (feni)-iron-42N (feni) |
42N (feni) |
|
|
38 |
АМ, АПМ |
copper-aluminium |
copper |
electronics |
